NADCAP heat treatment thermocouples

banner-heat-traitementNADCAP is a quality process standard increasingly deployed in the aerospace industry.

The NADCAP heat treatment is asking for high quality thermocouples to monitor the homogeneity and stability in heat treatment furnaces with high accuracy.

Thermocouple heat treatment :

It measures the temperature in the heat treatment furnace in real time. These values are the key parameters to demonstrate the quality and validity of the heating process. For an optimum quality process, THERMOCOAX is producing high quality class 1 thermocouple cables. We are using the AMS2750 standard regarding the accuracing and thermocouple controls.
As a thermocouple cable manufacturer, we calibrate only the cable to avoid calibrating the thermocouple itself. By this methodology, we support our customers in their cost reduction policy.

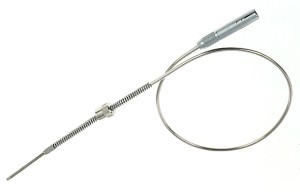

SLA 229

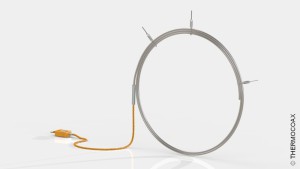

2 PRe I 30 Cl1 600mm TI DT 2PR25 5cm FIM-S

2 LM I 30 CLI 3m TI FIM.N

Key Parameters :

THERMOCOAX Homemade Mineral Insulated Cable
Calibration of the cable batch, at each ends and in the middle.

Advantage : Avoids calibration of each thermocouple, cost reduction.

  • Compliant with AMS2750
  • Thermocouples type J, K or N type, class1 in accordance with IEC582
  • Sheath Alloy: Stainless Steel, Inconel, Haynes 214
  • Diameter: 0.25 up to 6mm
  • Length: No limitation
  • Easy shaping for better integration
